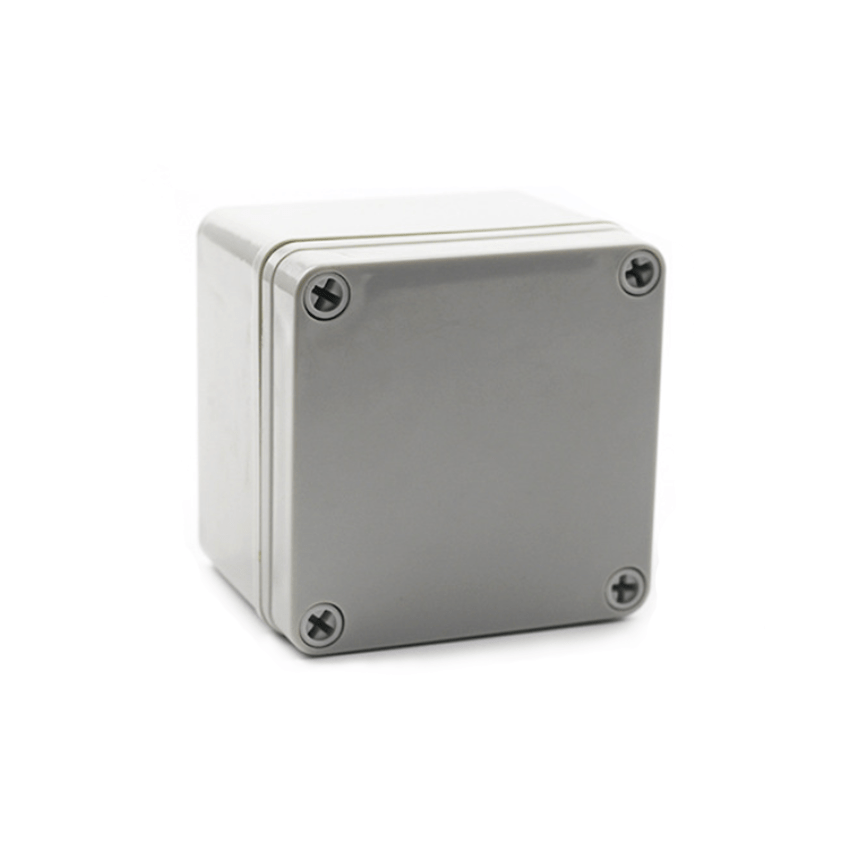

IP67 Plastic Box
Introduction
Item name: Plastic Junction Box
IP rate: IP67
Material: High strength ABS/PC
Color: Greyish white
Dimension: Full size chart show as below

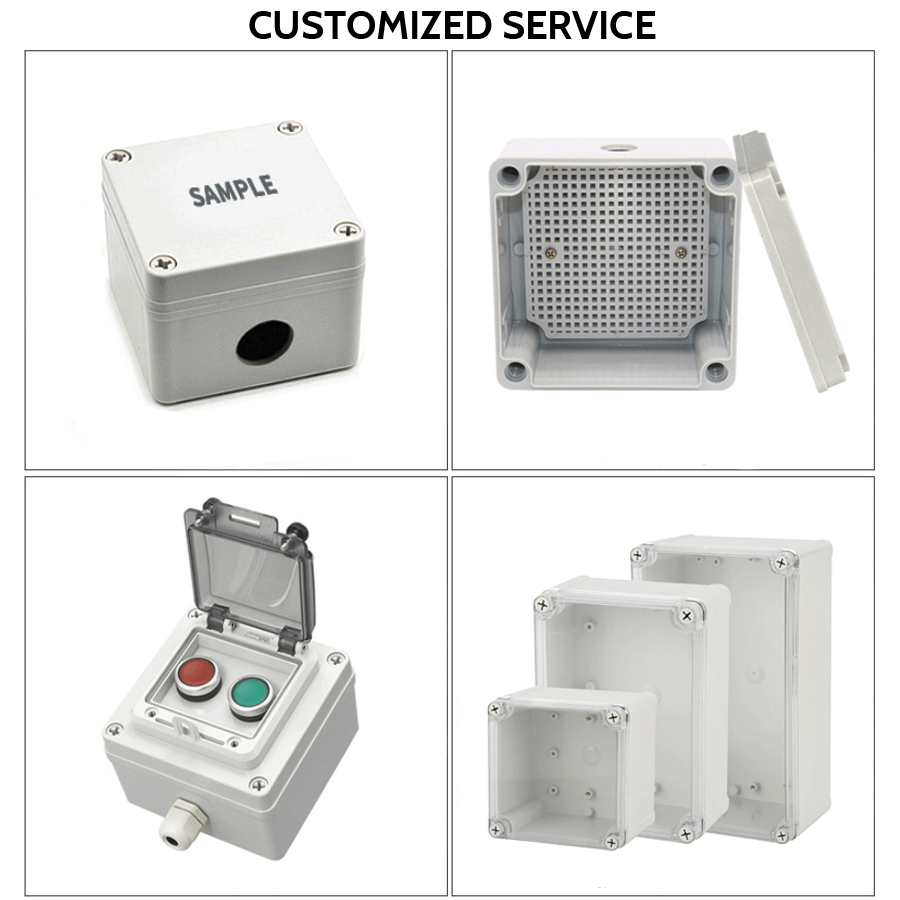

Custom service:
- Drilling hole
- Printing script
- Baseplate or din rail
- Custom transparent lid
- Cable gland/Various switch

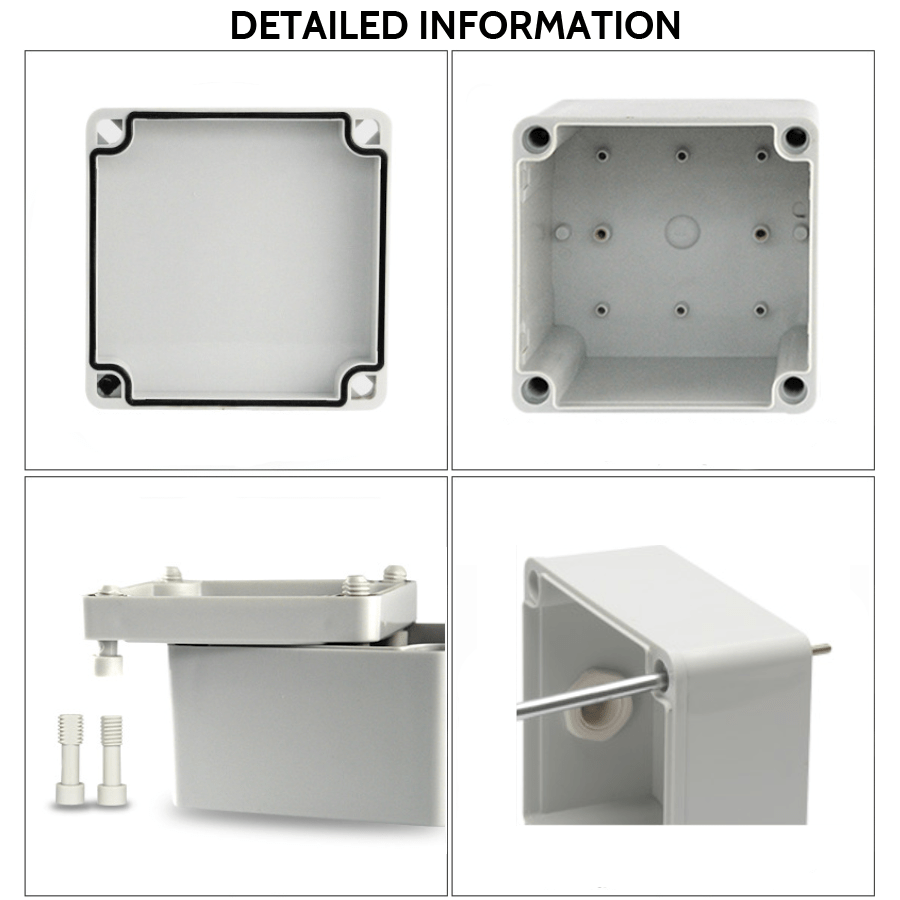

Description
1. The ABS/PC material is with good performance, high strength and light weight.
2. Operating temperature: -40 °C to +85 °C.
3. The box is waterproof, dust-proof and anti-corrosion, the IP rate can reach IP67.
4. The box can be fixed on the wall directly through the through-holes at the four corners.

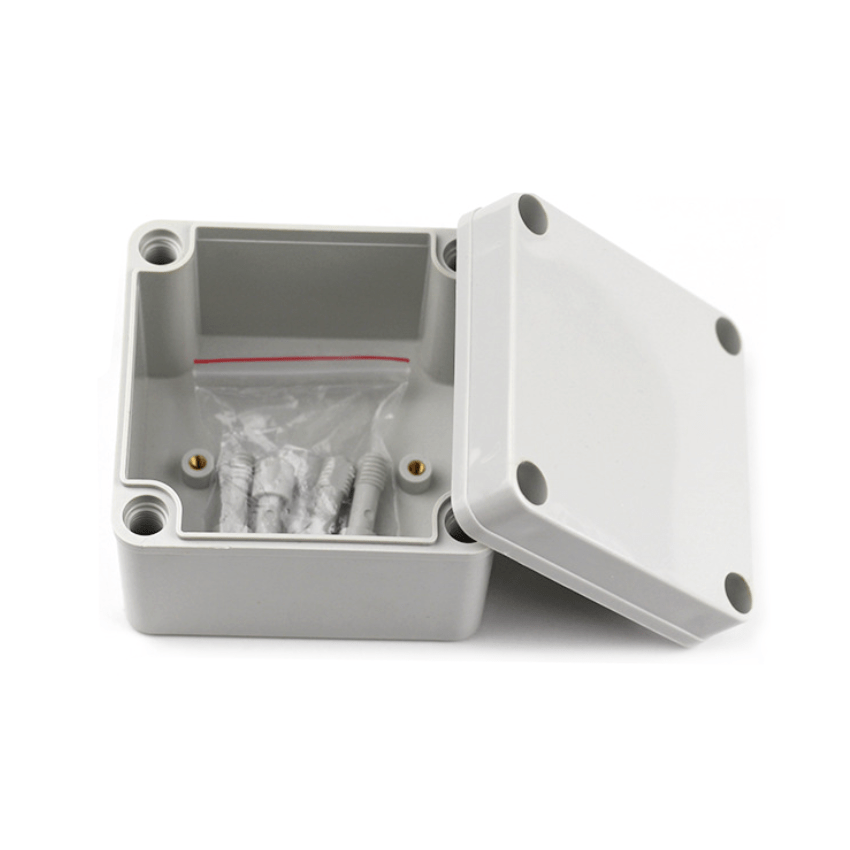

5. The Plastic screw is rust free and anti falling design, suitable for wet environment or outdoor use.
6. There are multiple screw posts inside to facilitate the fixing of circuit board and related components.

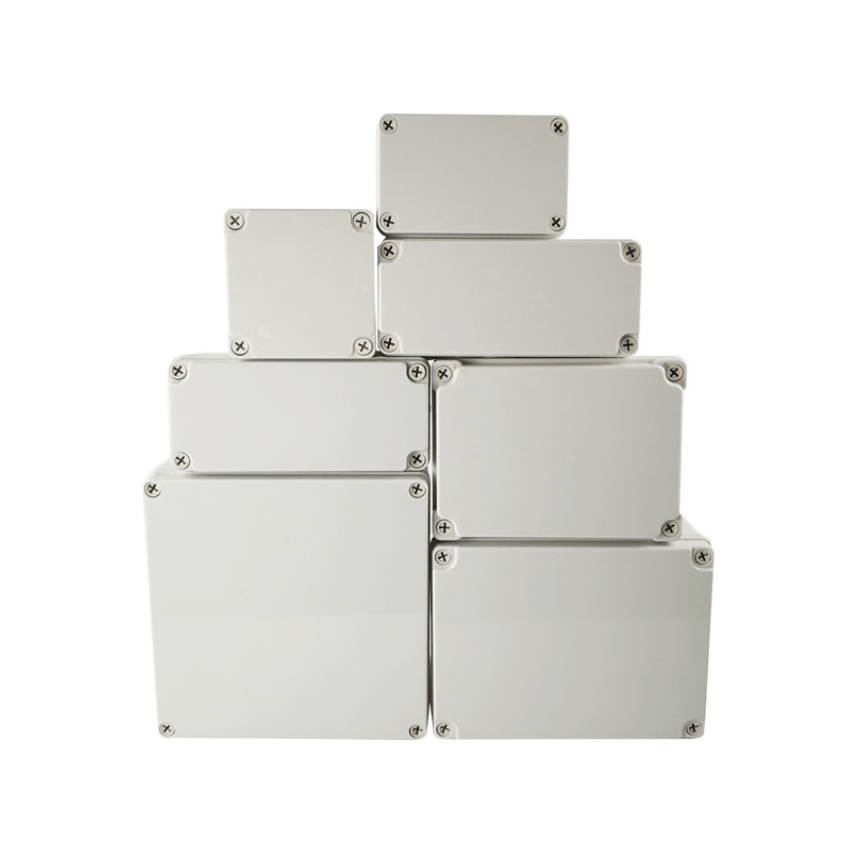

Size Chart
| Model | Dimension(mm) | Model | Dimension(mm) |
|---|---|---|---|
| P0906 | 96*65*55 | P2015-1 | 200*150*100 |
| P1010 | 100*100*75 | P2015-2 | 200*150*130 |
| P1108 | 110*80*45 | P2020 | 200*200*95 |
| P1108-1 | 110*80*70 | P2020-1 | 200*200*130 |
| P1108-2 | 110*80*85 | P2508 | 250*80*70 |
| P1212 | 125*125*75 | P2508-1 | 250*80*85 |
| P1212-1 | 125*125*100 | P2515 | 250*150*100 |
| P1308 | 130*80*70 | P2515-1 | 250*150*130 |
| P1308-1 | 130*80*85 | P2819 | 280*190*130 |
| P1608 | 160*80*55 | P2819-1 | 280*190*180 |
| P1608-1 | 160*80*95 | P2828 | 280*280*130 |
| P1712 | 175*125*75 | P2828-1 | 280*280*180 |
| P1712-1 | 175*125*100 | P3428 | 340*280*130 |
| P1714 | 170*140*95 | P3428-1 | 340*280*180 |
| P1717 | 175*175*100 | P3819 | 380*190*130 |
| P1808 | 180*80*70 | P3828 | 380*280*130 |
| P2015 | 200*150*75 | P3828-1 | 380*280*180 |
Feel free to drop us an e-mail
Please send us an e-mail to ask for the quotation or drawing of your interested items.
We’ll get back to you within 24 hours.
